Top Mounted Level Switch

We are one of the world's best manufacturers and suppliers of an array of magnetic level switches. We have an experienced team of engineers and professionals who take sustained efforts to build and develop latest models of switches.

Our magnetic level switches can be easily mounted on walls and can be adjusted with a screwdriver. These switches are widely used in oil and gas, petrochemical, power generation, pharmaceutical and several other industries. Along with production and supply of switches, we also foster onsite installation and regular maintenance.

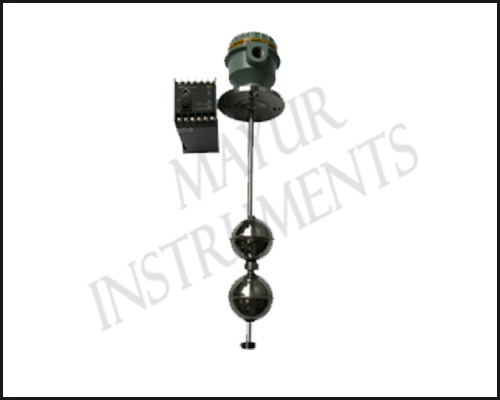

Top Mounted Level Switch

Model No. : MI - 014

Suitable for automatic operation of pumps, give change over contact at predetermined level stepless adjustment of switchin point entire range without interrupting to process.Switching contact are hermitacally sealed in glass hence safe & totally protecting them from surroundings.

Material of Wetted Parts

S.S.304/S.S.316/P.P./P.V.C. Casing Weather Proof/Flame Proof

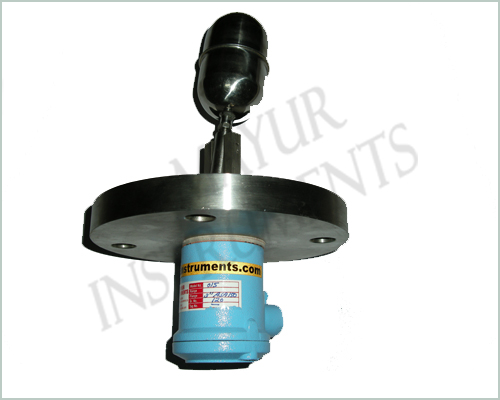

Side Mounted Magnetic Level Switch

Model No. : MI - 015

The Side Mounted Magnetic Level Switch is an economical free and reliable device used for high, low and intermediate point level switching. It is ideal for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models exceeded.

Specification

Installation Normally Side & Top Mounted for special applications
Enclosure Cast Aluminum
Conduit Connection 1/2" BSP (F) with 1/2" BSP (M) Conduit
MOC of Floats SS304, SS316, PP, SS304 with PVDF coated
Min. Specifica Gravity 0.6 depending upon float material and dimensions
Process Connections Flanged or Screwed
Switch Type Micro Switch (SPDT or DPDT)
Switch Rating 5A / 250 VAC
Switch Differential Fixed (15 ± 5mm). Adjustable between 40 & 300mm depending upon float,trim length & cam positioning
Accuracy ±2mm
Repeatability ±1mm
Max. Operating Temperature Upto 250ºC and High temperature model upto 3500C
Max. Operating Pressure Upto 20 Kg/cm2 at ambient temperature (Consult factory for pressure more than 20 Kg/cm2)
Special Features Adjustable differential, L/Z cranked trims, High temp. Construction with radiating fins
Ingress Protection IP 65
Float Diameter 45 mm (48 mm at welded seam)
Insertion Depth 215 mm (Standard)

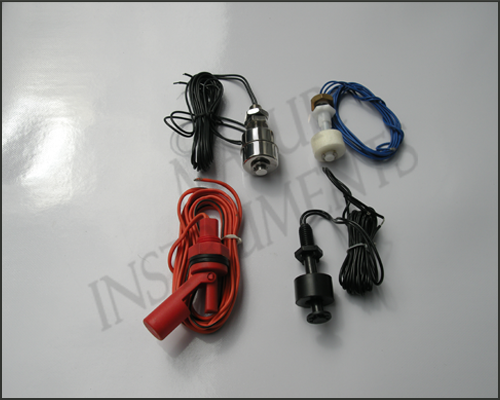

MINI LEVEL SWITCH

MINI LEVEL SWITCH

The Mayur Instruments Mini Level Switches are top mounted as well as side mounted. Top Mounted mini level switches are installed vertically and can be extended through an extension pipe for low level switching or alternatively switch can be side mounted through an elbow. The switch action can be changed from N/O to N/C and vice versa by simply reversing the float direction. The Side Mounted mini level switches are installed horizontally and can be mounted vertically for some applications like flow detection. The switch action can be reversed by reorientation of the mounting.

CABLE FLOAT LEVEL SWITCH

Model No. : MI - 017

The Side Mounted Magnetic Level Switch is an economical free and reliable device used for high, low and intermediate point level switching. It is ideal for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models exceeded.

Specification

Float Protection WP IP-68
Terminal Enclosure Cast Aluminum, WP IP-66
Cable Gland Brass
Process Connection Flanged x 1", 1-1/2", 2", 2-1/2", 3", 4" NB, 150#
Integral Cable Length 2, 3, 5, 6, 8, 10, 15 & 20 meters (Larger lengths on request)
Contact Type Microswitch (SPDT)
MOC of Float Polypropylene
MOC of Counter Weight Polypropylene
MOC of Cable Neoprene x 10mm
Min. Liquid Specific Gravity 0.75
Adjustable Stopper Polypropylene
Support Pipe SS304 / Polypropylene
Suspended Ballast SS304 / Polypropylene with PVC insulated SS304 rope
Shape Disc
Differential Angle 28"
Max. Operating Pressure 2 Kg/cm2
Max. Operating Temperature -10°C to 70°C
Switch Rating 8A, 250 VAC
Service Clear or Dirty Wate
