MAGNETIC LEVEL INDICATORS

Renowned for quality and customer satisfaction in the industry of switches and boards, Mayur Instruments have gained immense recognition in India for a variety of Magnetic level indicators.

Our Magnetic Level Indicators are available in different models, variants and specifications, designed to suit the requirement of various industrial applications. Our Magnetic level indicators are widely used in oil and gas, petrochemical, power generation, pharmaceutical and several other industries to display the exact indication. We ensure onsite product installation and maintenance of indicators at highly affordable costs.

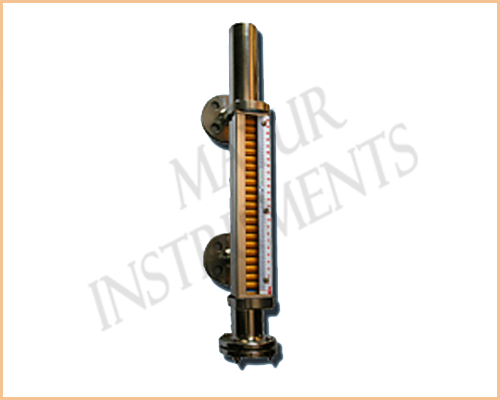

Magnetic Level Indicators For Bi-colour Type (Side Mounted)

Model No. : MI - 03

The "Mayur Instruments" make Tubular Level Indicator (Side Mounted). It is a reliable device for direct reading the level of liquid. It is a simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks / storage / overhead etc.

Specification

Connection Flanged ASA 150 R F
Range 300 mm TO 6000 mm
Press Rating 25 Kg/cm2
Temp. Rating 150℃
Calibration cms / mm / Inches
Material of Wetted Parts S.S. 304/S.S. 316/P.P.

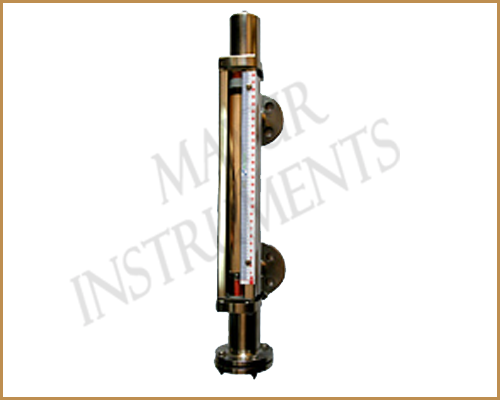

Magnetic Level Indicators for Red Follower (Side Mounted)

Model No. : MI - 02

Cylindricals float with powerful magnet moves with level inside metallic chamber. Level is indicated by a weighted magnetic capsules that follows the float movement. Capsule guide in filled glass tube attached externally to chamber. Excellent visibility because of lens action of liquid filled glass & absolute safety because of non fragile metal chamber.

Specification

Connection Flanged ASA 150 R F
Range 300 mm To 6000 mm
Press Rating 25 Kg/cm2
Temp. Rating 150℃
Calibration cms / mm / Inches
Material of Wetted Parts S.S. 304/S.S. 316/P.P.

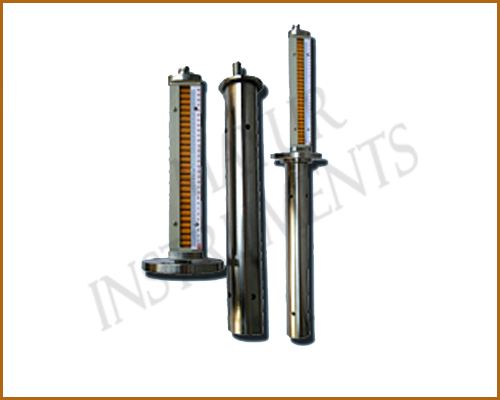

Magnetic Level Indicators (Top Mounting)

Model No. : MI - 03

Top Mounting Level Indicators are particularly useful for continuous level measurement of liquid which coagulate if stagnant, liquids with high viscosity. Liquids under high pressure & for those liquids which are corrosive & hazardous in nature.We can also provide you with bi-colour.

Specification

Connection Flanged ASA 150 R F
Range Up to 500 to 5000 mm
Press Rating 20 Kg/cm2
Temp. Rating 0℃ to 200℃
Calibration cms / mm / Inches
Material of Wetted Parts S.S. 304/S.S.316OptionalWetted Parts
Flanges Minimum 4" NBASA 150 #
